3.01 - Performance Mode Screen

The Performance Mode screen has a large array of controls and on screen elements that the user can choose to use.
Because of the complexity of this screen I will break this up over several pages.

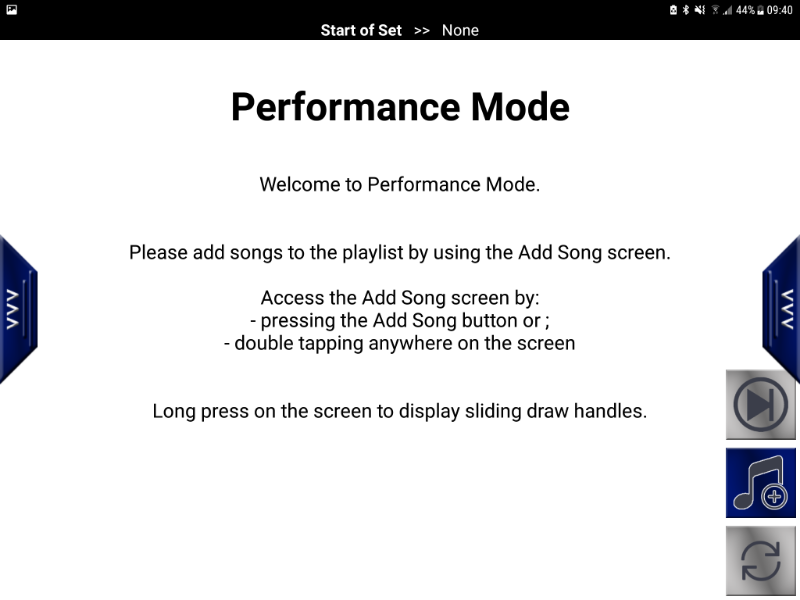

When performance mode is opened you will see this screen.
It provides the user with some helpful reminders on how to use Performance Mode.

In this screenshot you can also see the slideout bar handles on the left and right hand side of the screen.
The handles for the slideout bars will hide after several seconds if none of the slideout bars are open.
They can be made visible again at any time by long pressing anywhere on the screen.
The left slideout bar contains controls for displaying/hiding on screen elements, the song editor, enabling/disabling automation and sound, accessing settings, screen casting and wifi master/slave control.
The right slideout bar contains the active playlist, and controls for adding songs, moving to the next song and accessing the playlist editor

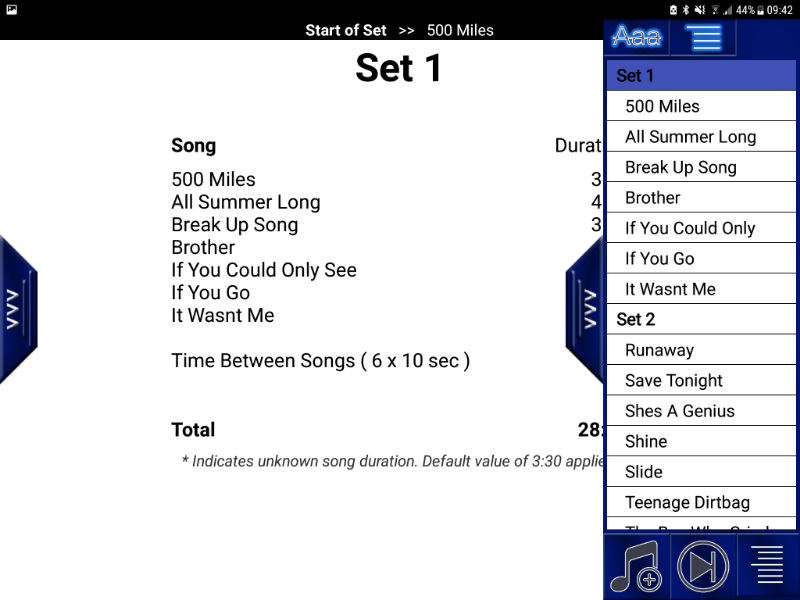

When songs and/or sets have been added into the playlist then the Performance Mode screen will change to show a summary of the current setlist.

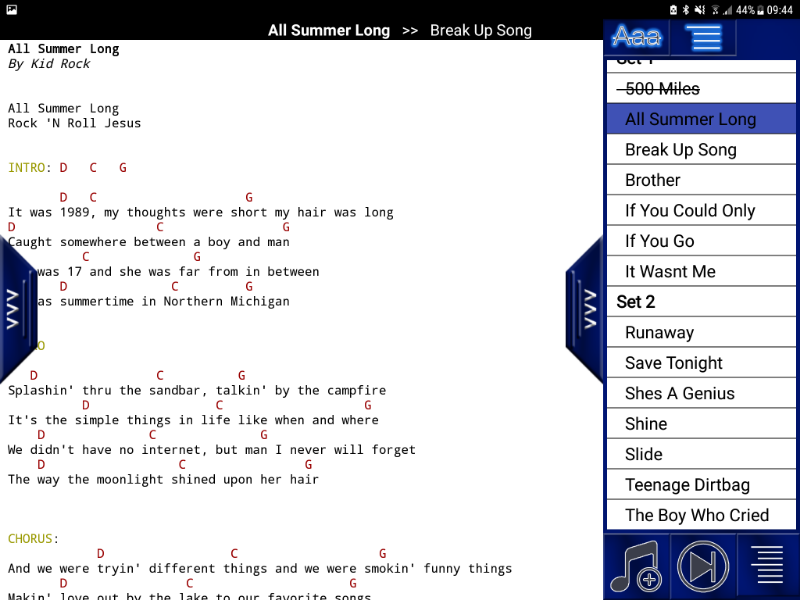

And when moving to an active song it will change to show the song contents
